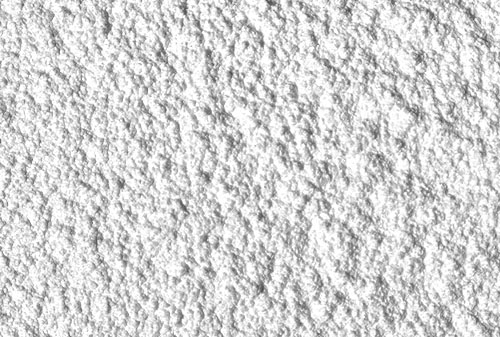

CeyQuartz Micronized Silica Flour:

CeyQuartz' manufacturing facilty has the capability to finely mill raw quartz into silica powder, also known as silica flour or quartz powder. Our finely ground powder plays a vital role in the production of fused spherical silica used in epoxy moulding compounds as well as the paint and ceramic industries.

CeyQuartz silica powder comes in different standard of grades. Additional grades of silica powder can be manufactured upon a special blend request.

  D50 D97 WS+150𝜇m WS+106𝜇m WS+75𝜇m WS +45𝜇m EC Moisture Cl- Na+ Fe2+ Al203 Fe203 Si02
  𝜇m 𝜇m %   % % 𝜇S/cm % ppm ppm ppm ppm ppm %
CML150-001 28.0-38.0 150 Trace 4.5-10.5 - 29.5-39.5 15 MAX 0.1 max 15 MAX 10 MAX 15 MAX 15 MAX 15 MAX 99.8
CML150-002 26.0-33.0 150 0.02 max 2.0-10.0 - 28.0-42.0 10 MAX 0.1 max 15 MAX 15 MAX 15 MAX 500 MAX 50 MAX 99.8
CML115-001 18.9-24.5 115 0 - 2.7-7.3 16.1-21.5 8 MAX 0.1 max 10 MAX 10 MAX 15 MAX 300 MAX 50 MAX 99.8
CML115-002 23.0-30.0 115 Trace 3.0 MAX - 27.0-35.0 15 MAX 0.1 max 10 MAX 10 MAX 15 MAX 500 MAX 50 MAX 99.8
CML115-003 10.0-16.0 115 Trace - 4.0 MAX 10.0 MAX 15 MAX 0.1 max 10 MAX 10 MAX 15 MAX 500 MAX 50 MAX 99.8
CML115-004 10.0-16.0 115 0.1 max - 3.7-7.7 10.0-15.0 10 MAX 0.1 max 10 MAX 10 MAX 15 MAX 500 MAX 50 MAX 99.8
CML115-005 10.6-14.6 115 0 0.2 max 2.0 max - 10 MAX 0.1 max 10 MAX 10 MAX 11 MAX 500 MAX 50 MAX 99.8
CML115-006 6.0-10.0 115 0 - 1.5 MAX 5.0 MAX 10 MAX 0.1 max 10 MAX 10 MAX 15 MAX 500 MAX 50 MAX 99.8
CML115-007 19.0-26.0 115 Trace - 5.5-12.5 15.0-23.0 15 MAX 0.1 max 10 MAX 10 MAX 15 MAX 500 MAX 50 MAX 99.8
CML115-008 20.7-26.3 115 0 - 11.0 max 17.8-22.5 10 MAX 0.1 max 10 MAX 10 MAX 15 MAX 500 MAX 50 MAX 99.8
CML115-009 22.0-28.0 115 0 3.0 max - 24.7-33.3 10 MAX 0.1 max 12 MAX 12 MAX 15 MAX 500 MAX 50 MAX 99.8
CML82-001 21.3-24.4 82 0 - 0.1 max 17.3-22.3 10 MAX 0.1 max 10 MAX 10 MAX 15 MAX 500 MAX 50 MAX 99.8
CML82-002 20.0-26.0 82 0 - 1.0 max 17.0-24.0 5 MAX 0.1 max 10 MAX 10 MAX 6 MAX 300 MAX 50 MAX 99.8
CML75-001 18.4-23.8 75 0 - 0.1 max 11.0-20.8 8 MAX 0.1 max 10 MAX 10 MAX 15 MAX 300 MAX 50 MAX 99.8
CML75-002 22.8-34.1 75 0 - 0.1 max 21.9-39.1 8 MAX 0.1 max 10 MAX 10 MAX 15 MAX 300 MAX 50 MAX 99.8
CML45-001 3.0-4.0 45 0 0 0 0.02 MAX 10 MAX 0.1 max 10 MAX 10 MAX 80 MAX 2000 MAX 70 MAX 99.8
CML45-002 6.0-8.0 45 0 - 0.01 MAX 0.9 MAX 10 MAX 0.1 max 10 MAX 10 MAX 80 MAX 2000 MAX 70 MAX 99.8
CML45-003 10.0-13.0 45 0 - 0.01 MAX 4.9 MAX 10 MAX 0.1 max 10 MAX 10 MAX 80 MAX 2000 MAX 50 MAX 99.8

All Products are RoHS compliant.
